Description
Product Description

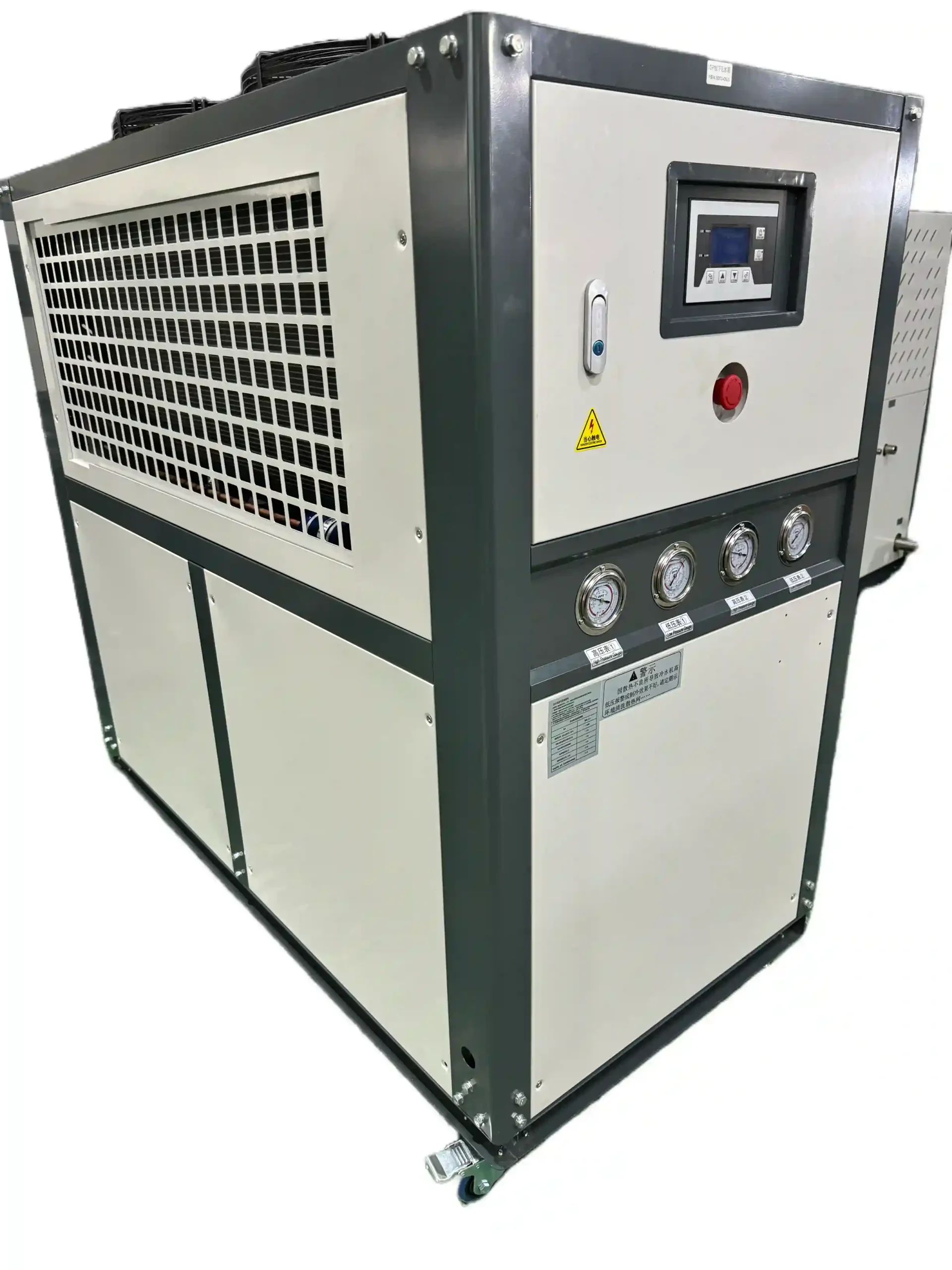

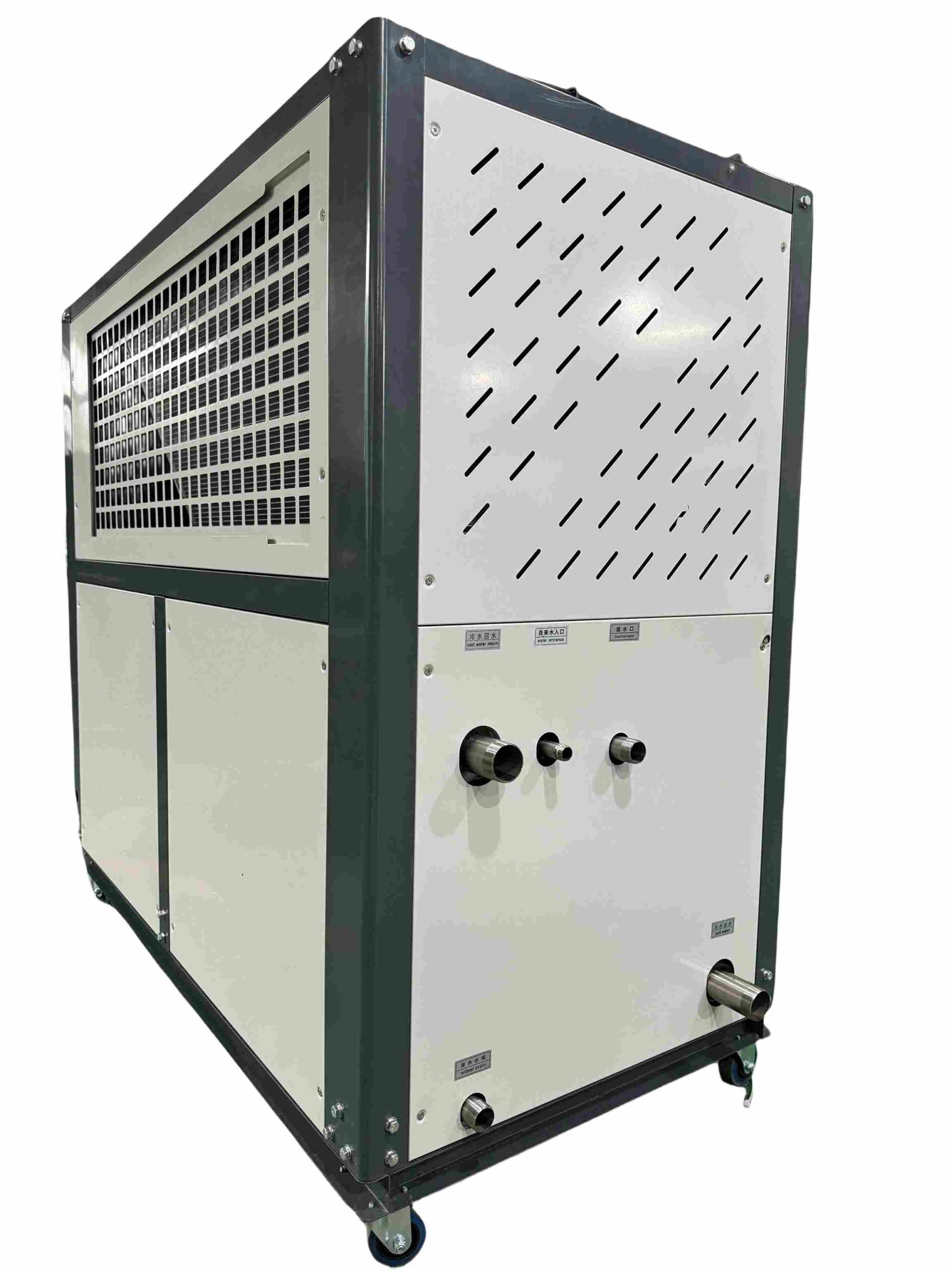

The 5HP box-type air-cooled water chiller is designed for efficient cooling with a range of applications in various industries. It features a high-quality, imported Panasonic compressor, a powerful water pump, and advanced heat exchange systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Compressor | Imported Panasonic compressor |
| Water Pump | 375 W |
| Condenser | External thread fin type |
| Evaporator | Stainless steel/copper coil type |
| Water Tank | Stainless steel/glue water tank |
| Piping | 1-inch inlet and outlet for chilled water media |
| Temperature Control | Range: 5-50°C, Accuracy: ±1.0°C |
| Cooling Input Power | 3.75 kW |
| Cooling Operating Current | 3.75 kW |
| Pump Head | MH18 0.5 Aoyuan clear water pump |
| Flow Rate | 3 m³/h |
| Heat Exchange Capacity | Condenser: 13.5 kW, Evaporator: 13.5 kW |
| Water Tank Volume | 68 liters |
| Dimensions (L × W × H) | 1.25 × 0.63 × 1.28 meters |
| Weight | 180 kg |
