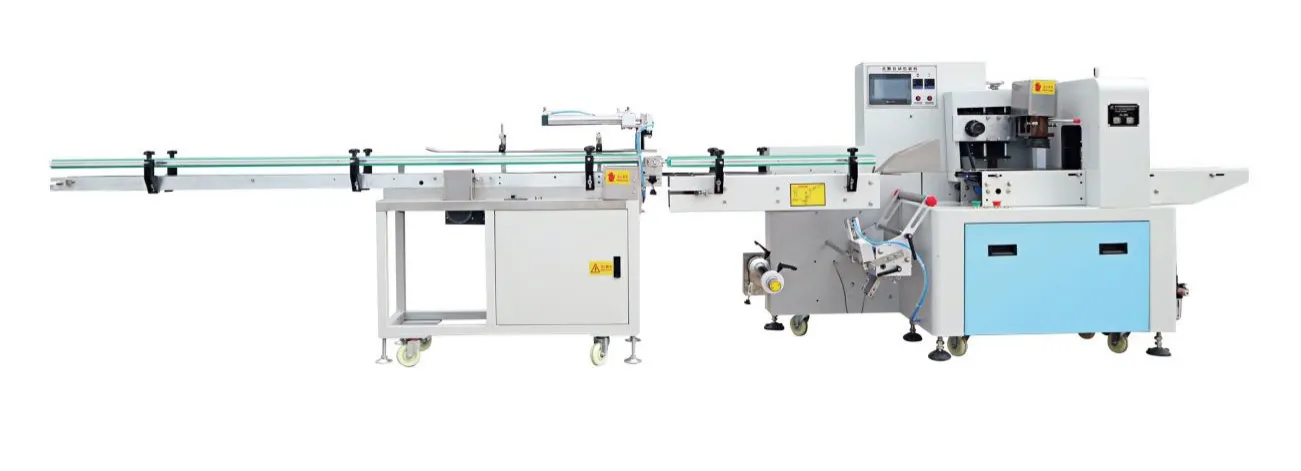

Disposable cup single row fully automatic counting and packaging machine

The disposable cup single row fully automatic counting and packaging machine offers efficient, high-speed packaging with PLC control, optical fiber counting, and versatile customization options.

Description

Product Description

The disposable cup single row fully automatic counting and packaging machine is designed for efficient and precise packaging of disposable cups. It features PLC programmed automatic cycle motion control and performs functions such as stacking, counting, feeding, film sealing and cutting, and material separation. The cup counting machine utilizes a stepping system and optical fiber counting to enhance the speed of bag packaging.

Technical Specifications

ParameterDetails
Maximum Packaging Capacity10-25 times/min
Packaging Film Width150-500 mm
Bag Making Length250-800 mm
Total Power3.5 kW
Power Supply220 V
Machine Dimensions (L × W × H)5.65 × 0.8 × 1.35 meters
Packaging HeightNot more than 150 mm
Machine Weight600 kg
Packaging Diameter90-142 mm
